S38/S

TECHNICAL DESCRIPTION

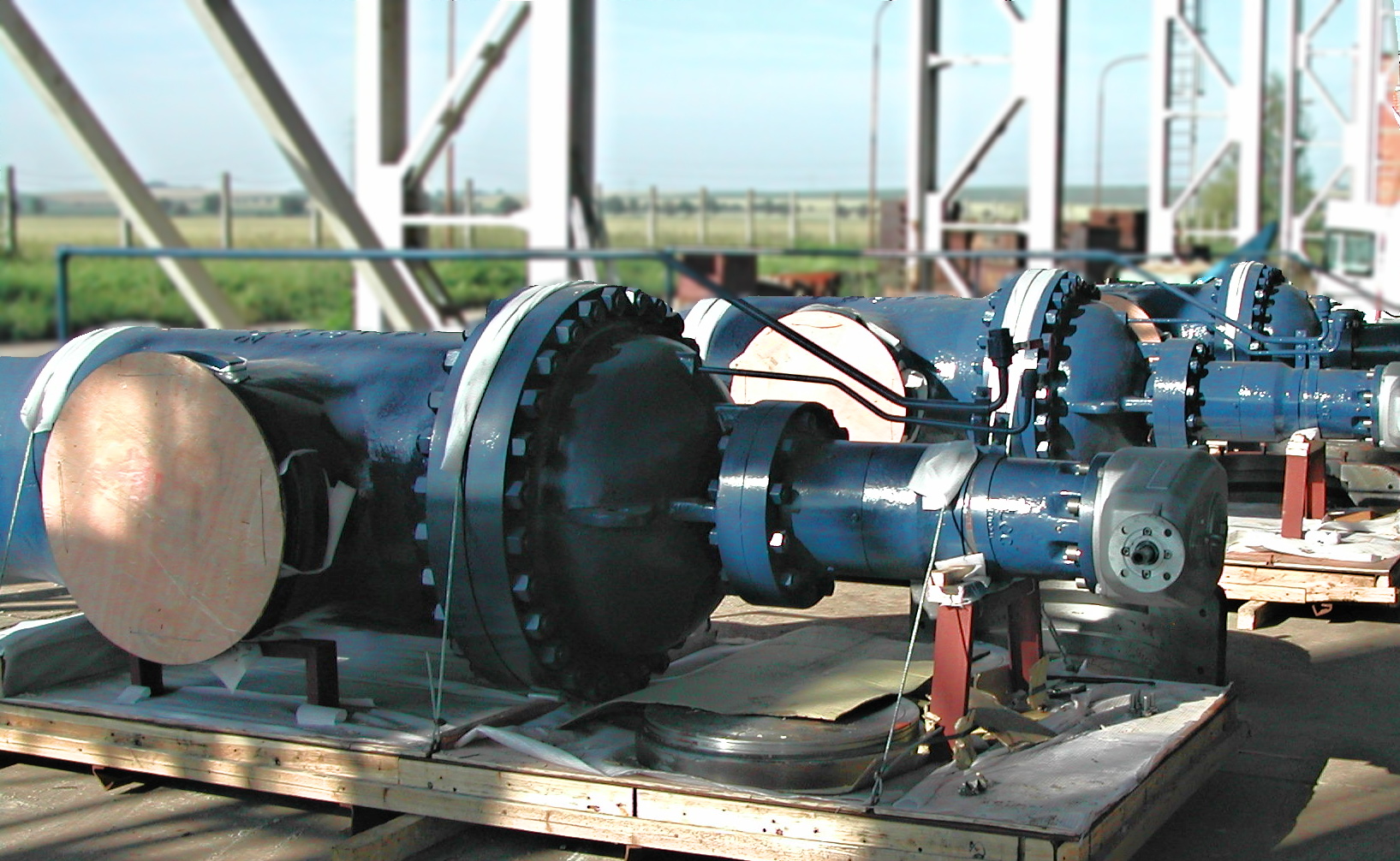

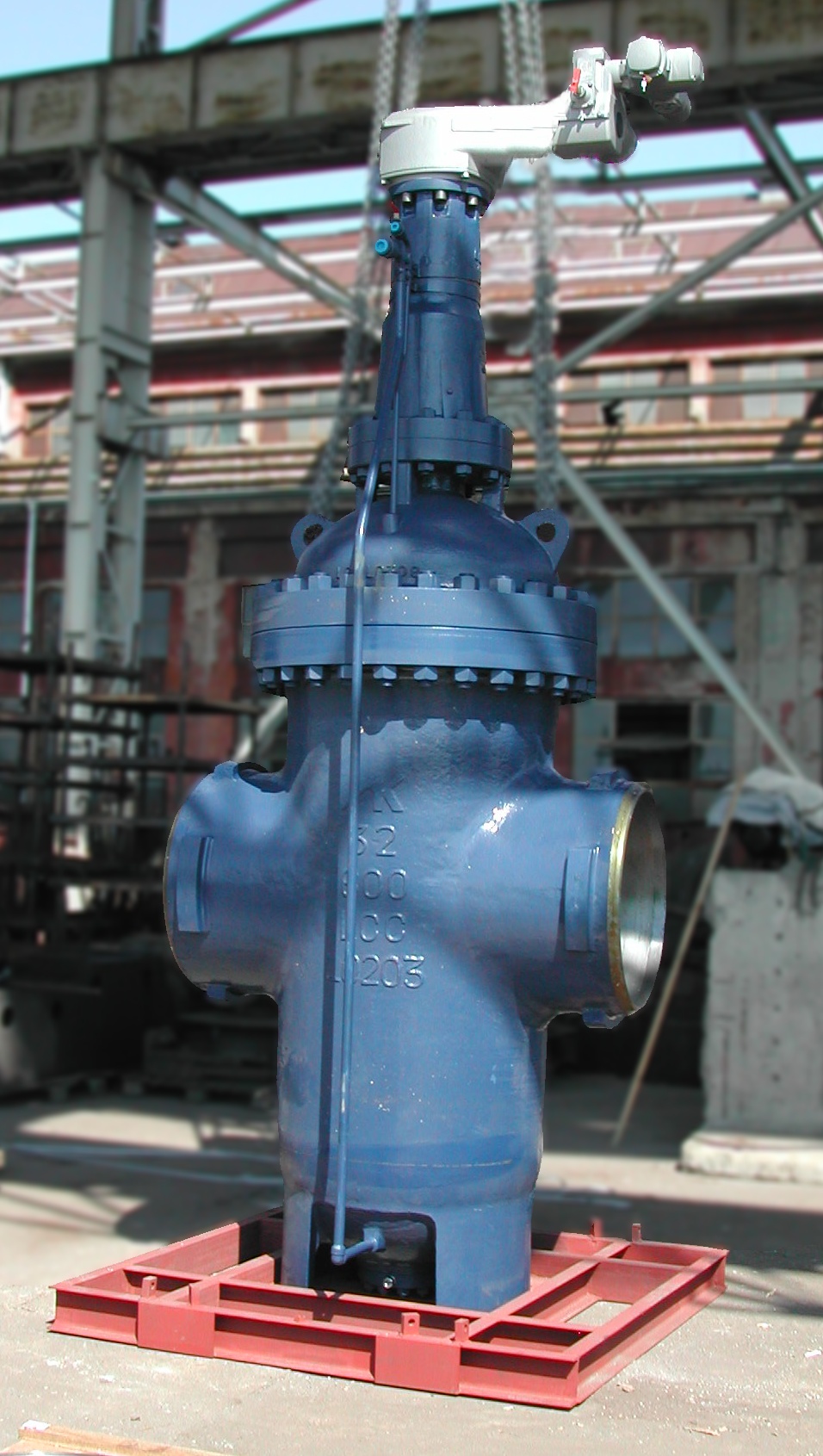

S38/S gate valves are controlled shut-off valves. They are designed to stop or allow the flow of the medium by external operation, either manually or via the installed drive. They are not intended to regulate the flow of the transported medium. The medium can flow in both directions. These gate valves are designed and manufactured to ensure maximum service life and reliability. They are suitable for liquids, gases and steam.

MATERIAL SPECIFICATION

Gate valves are made from carbon and stainless steel. The material type can be adjusted according to the customer´s request to optimally suit the operating conditions.

BASIC STANDARDS FOR DESIGN

Basic design
API 6D,  ASME/ANSI B16.34

Building lengths
ASME/ANSI B16.10, EN 558-1, EN 558-2, EN 12 982

Flange dimension
ASME/ANSI B 16.5, ASME/ANSI B 16.47, EN 1092-1

Testing
API 6D, API 598, EN 12 266-1

Pressure-temperature rating
ASME/ANSI B 16.34, EN 12 516-1

Dimension of welding-on ends
EN 12 627, ASME/ANSI B 16.25, EN 1759-1

Certificates

  • Certificate EAC
  • European certificate CE
